Boring Machine PBR Mod. AF 110 CNC 2500

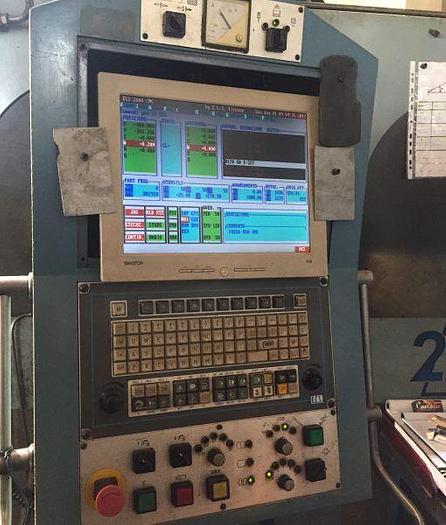

Spindle diameter reaming mm. 110 Cone attack ISO. 50 Spindle diameter milling mm. 160 Housing diameter cutters mm. 221.44 Spindle speed – continuously variable on two legs – r / 1 ‘ n. 15 – 2000 Constant torque from laps 15 to 95 Nm. 1500 Constant power Kw 14.7 in slow range from laps n. 95÷410 Axial spindle hub (Z) mm. 500 Quick spindle movement (Z-Y) mm./1’ 8000 Vertical spindle hub (Y) mm. 1800 Z axis Translating Screw diameter mm. 40 P.5 mm. Maximum of Z-axis thrust Kg. 4710 Useful dimensions of the rotary table mm. 1000×1250 Cross travel (X) mm. 2500 Longitudinal travel (W) mm. 1500 Rapid shift (X-W) mm./1’ 8000 Rapid turntable rotation – rpm / 1 ‘ n. 6 Permissible load on the rotary table Kg. 4000 Screw diameter axis of translation x-y-w mm. 63 P. 10mm. Maximum thrust of y-x-w Kg. 4710 Axis positioning accuracy +/- 0.01 mm. Repeatability of axes +/- 0.005 mm. Tools in stock n. 60 Chain pitch mm. 130 Automatic tool change time sec. 15 ca Maximum cutter diameter in stock mm. 250 Maximum tool weight Kg. 45 Maximum tool length mm. 500 Spindle motor in c.c Kw. 14.7 Axis motor in c.c. – cad. Kw. 2.25 Motor hydraulic unit Kw. 5.5 Numerical control units ECS. 2600 Year of make 1996 Weight machine Kg. 20000
