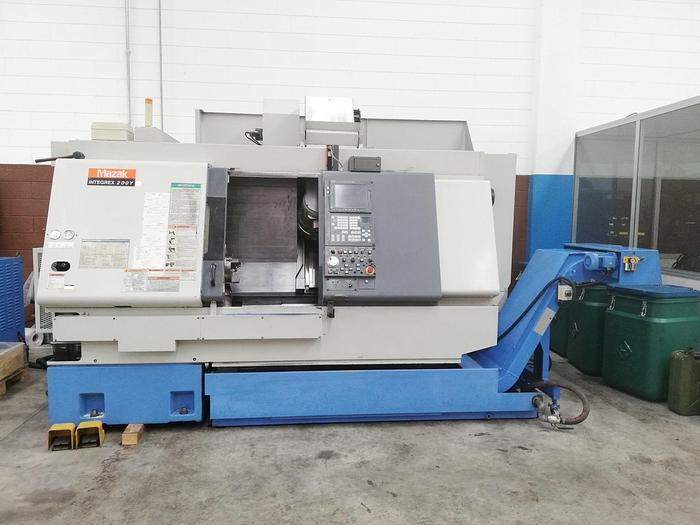

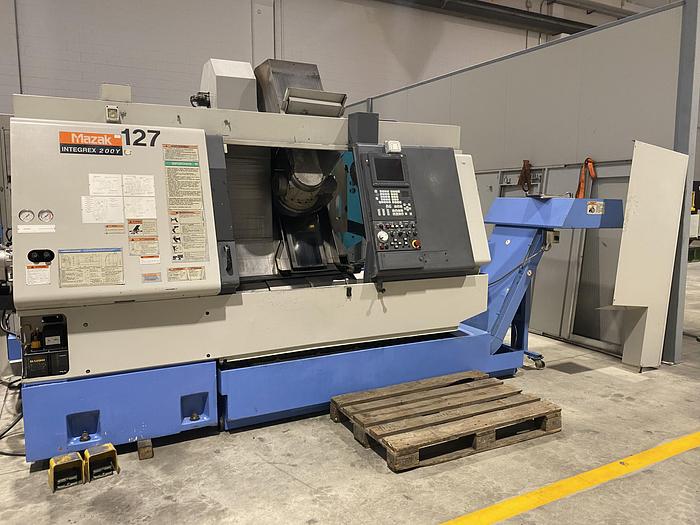

Turning Center CNC MAZAK mod. INTEGREX 200Y
Sold
Turning Center CNC MAZAK mod. INTEGREX 200Y
Location:Albano Sant'Alessandro, Italy
Specifications
| Manufacturer | MAZAK |
| Model | 200Y |
| Year | 2000 |
| Condition | Used |
| Max diameter of rotation | 540 mm |
| Max diameter of work | 540 mm |
| Max length of work | 1029 mm |
| Swing axis x | 530 mm |
| Swing axis y | +/- 140 mm |
| Swing axis z | 1065 mm |
| Rapid positioning axis x | 30 m/min |
| Rapid positioning axis z | 33 m/min |
| Rapid positioning axis y | 15 m/min |
| Rapid positioning axis c | 400 RPM |
| Spindle speed | 30-5000 RPM |
| Spindle attack | A2 6” |
| Spindle hole | 61 mm |
| Tailstock | 870 mm |
| Spindle | 140 mm |
| Tailstock spindle travel | C.M. 4 |
| Cnc | MAZATROL FUSION 640 |
| Turret with atc | 40 tools |
| Tool taper | MAZAK KM 63 |
| Swing speed of motorized tools | 15-6000 RPM |
| Motor power of motorized tools (10 min work.) | 7.5 kW |
| Max capacità di boring | 25 mm |
| Positioning axis b | 0.001° |
